About
This Product

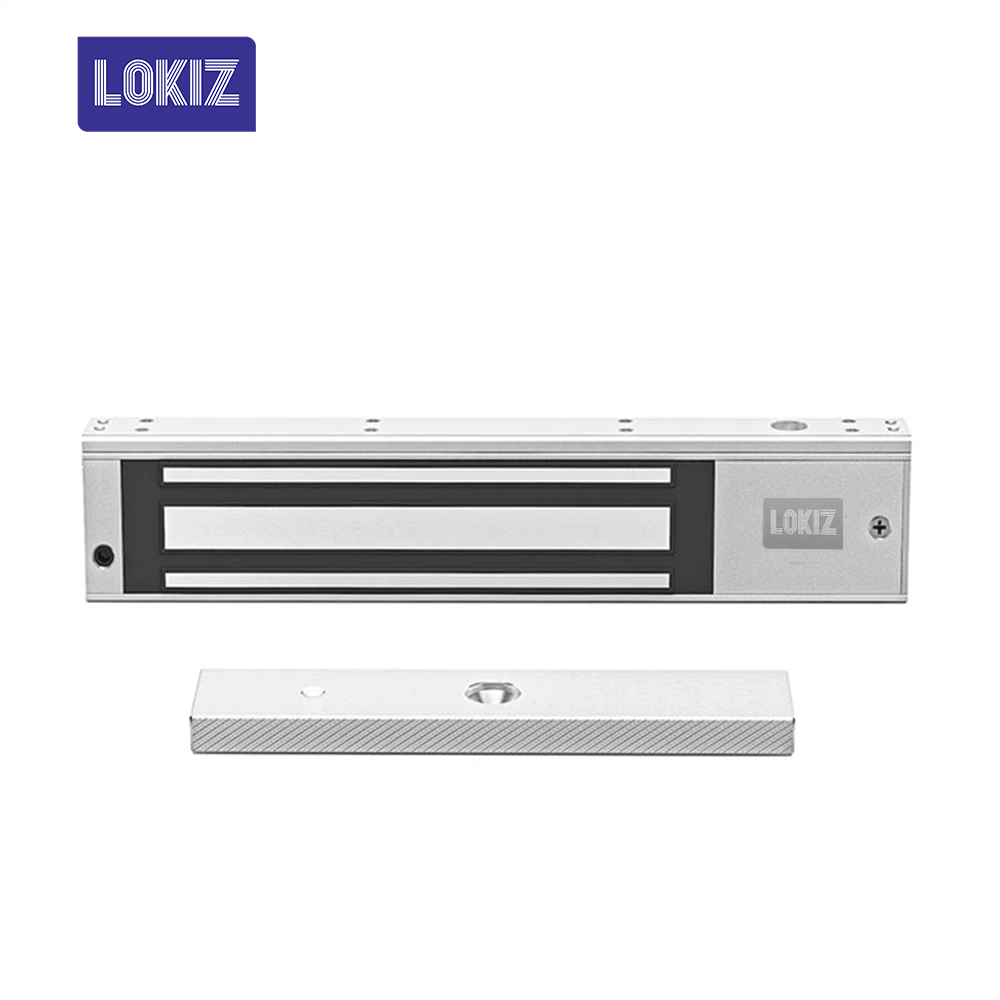

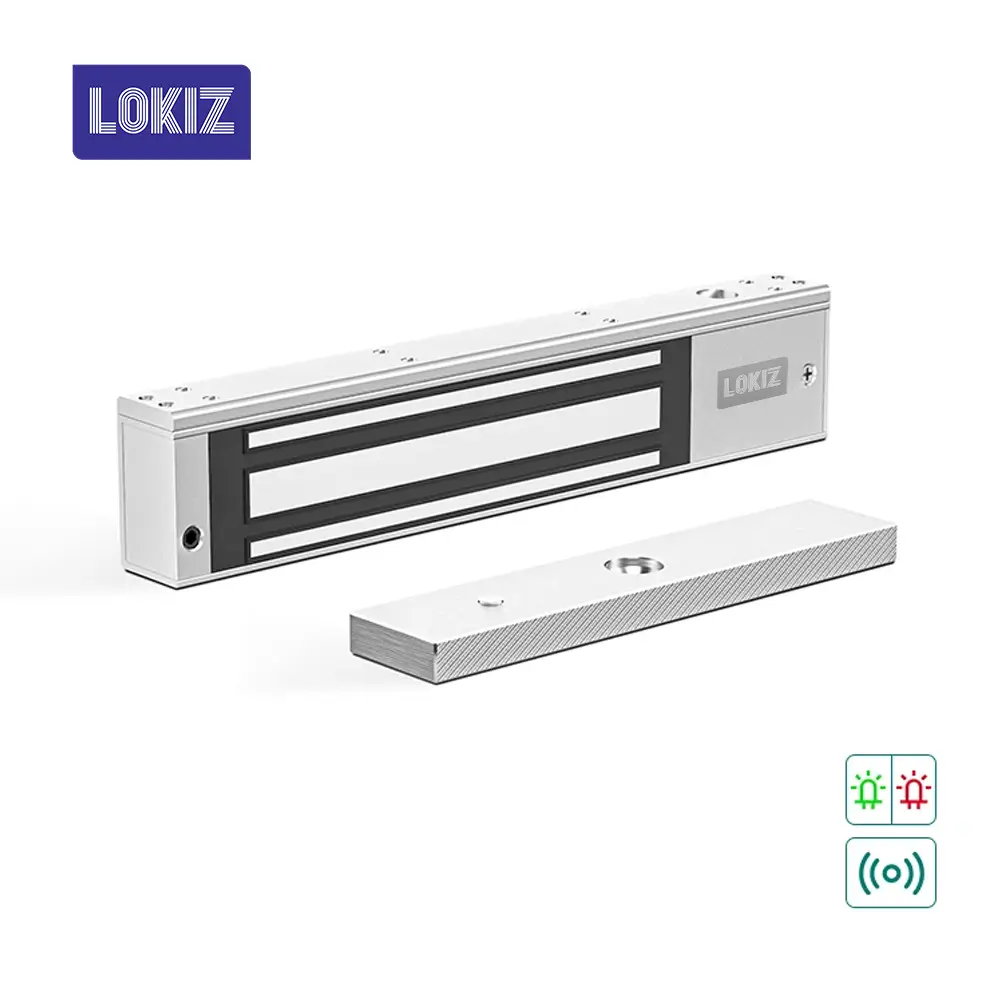

Enhance your security with the LK-M280-7T Single Door EM Lock, featuring a robust 600lbs holding force and a convenient LED indicator. This electromagnetic lock is ideal for securing a variety of door types, including glass, wooden, fireproof, sliding, and metal doors. Crafted from durable aluminum and incorporating a special anti-residual magnetism design, the LK-M280-7T ensures both safety and longevity for your access control system. The integrated red and green LED provides clear visual status indication.
Wide
compatibility
The LK-M280-7T Single Door EM Lock is designed to integrate seamlessly with a wide range of door types, making it a versatile solution for various applications. The lock is compatible with:
-
Wooden doors
-
Glass doors
-
Metal doors
-
Fireproof doors
-
Sliding doors
It is also suitable for use in access control systems.
Simple and easy
to use
The LK-M280-7T is engineered for easy installation and operation. Its straightforward design simplifies the setup process. The lock operates on either a DC12V or DC24V power supply and consumes a current of 12V/480mA or 24V/240mA. The clear red and green LED indicator light provides a quick visual confirmation of the lock’s status (Red LED).
| Parameter | Description |
| Product Name | 280KG 600LBS Single Door EM Lock with LED |
| Product Model | LK-M280-7T |
| Lock Size | 250L*47W*26H(mm) |
| Armature Plate Dimension | 180L*38W*11H(mm) |
| Holding Force | 280KG(600LBS) |
| Input Voltage | DC12V / DC24V |
| Current | 12V/480mA(±10%); 24V/240mA(±10%) |
| Security Type | Fail Safe |
| Suitable | Wooden Door, Glass Door, Metal Door, Fireproof Door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -20℃~+55℃(-4—131°F) |
| Humidity | 0~90%(non-condensing) |
| Certificate | CE, RoHS, FCC, UL |
| Unit Weight | 2.02KG |
| Standard Package | 12PCS/carton |
| Carton Weight | 24.24KG |
| Carton Size | 28*26.5*20Cm |
