Glass Swing Barrier Gates
in Dubai & UAE
LOKIZ Supplier

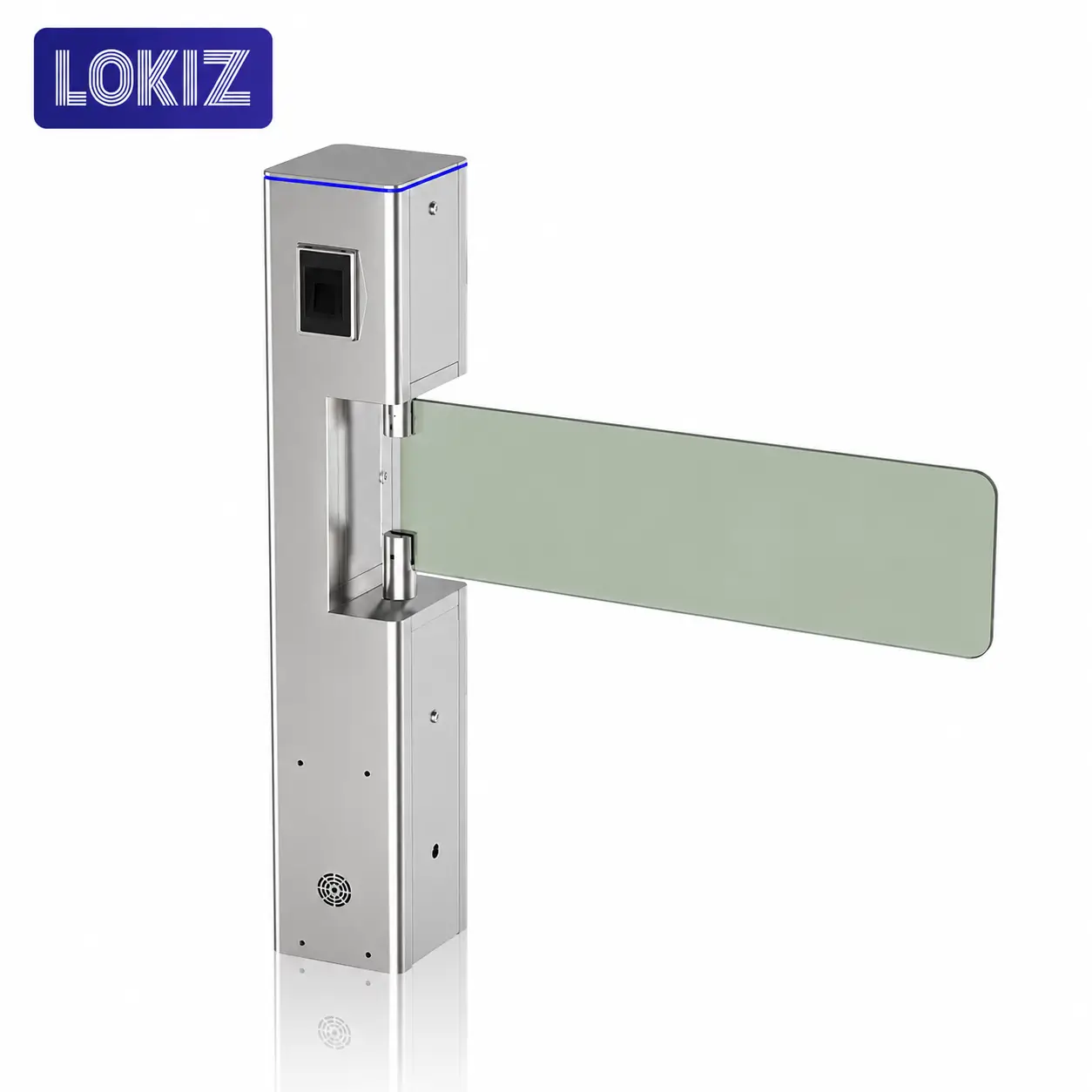

A glass swing barrier is a wide-lane pedestrian access gate that opens on a pivot swing mechanism — rather than retracting flaps — to provide a 800 mm wide clear passage. The tempered glass panel delivers a premium, transparent appearance that suits high-end interiors in Dubai hotels, corporate headquarters, and premium government buildings. An optional stainless speed bar panel is available for higher-security or outdoor sheltered installations.

When to Use a Swing Barrier

Glass swing barriers are the right choice when a standard 600 mm flap barrier lane is too narrow — for wheelchair users, medical equipment, luggage trolleys, pushchairs, or delivery personnel. In Dubai and UAE buildings, building regulations typically require at least one ADA-accessible wide lane per entrance, making a swing barrier a standard companion alongside flap barrier rows.

Swing Barrier vs. Flap Barrier

A flap barrier turnstile provides narrow-lane (600 mm) high-throughput pedestrian control (up to 30 persons/minute RFID). A glass swing barrier provides wide-lane (800 mm) access at moderate throughput (10 persons/minute) — ideal for accessibility lanes, VIP entrances, and locations where appearance is a priority. Most Dubai lobby installations combine both: a row of flap barriers for standard pedestrian flow plus one swing barrier for accessible and wide-load access.

Reader Integration

LOKIZ glass swing barriers accept all standard readers via Wiegand 26/34 and RS485 interfaces — compatible with RFID card readers, biometric fingerprint terminals, face recognition cameras, QR scanners, and mobile credentials. The swing barrier can be configured to open on credential only, or to operate normally open with credential-triggered close for accessibility compliance.

Emergency Mode & Safety

All LOKIZ glass swing barriers include emergency mode — the barrier opens automatically on power failure, ensuring clear evacuation routes compliant with UAE Civil Defence fire safety requirements. The tempered glass panel is designed to break safely if struck, and the swing mechanism is spring-loaded to return to the closed position after each authorised passage.
